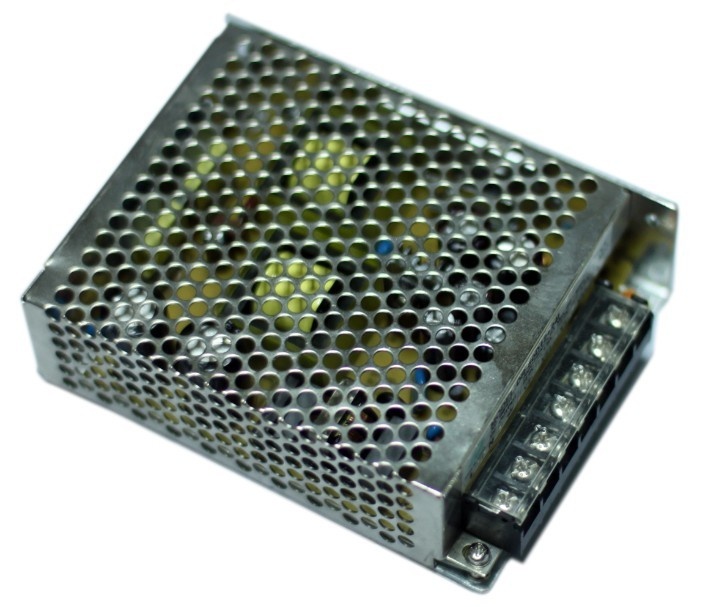

BCF-75S 系列
■ 特點
● 全球電壓輸入：85～264Vac,100～370Vdc
● 主動式PFC，PF>0.96@230Vac,>0.98@120Vac
● 超寬工作溫度范圍 (-25℃～
● 保護功能全面：過載/短路/過壓
● LED工作指示，輸出可調功能可選
● 豪華電解電容，高可靠性，長壽命
● 100%滿載老化
●質保2年，終身維護
■規格
|
產品名稱 注1 |
BCF-75S5 |
BCF-75S12 |
BCF-75S15 |
BCF-75S18 |
BCF-75S24 |
BCF-75S36 |
BCF-75S48 |
|
|
輸出 |
額定輸出電壓 |
5V |
12V |
15V |
18V |
24V |
36V |
48V |
|
整定范圍(輕載) |
5.0～5.1V |
12.0～12.12V |
15.0～15.15V |
18.00-18.18V |
24.0～24.24V |
36.0～36.36V |
48.0～48.48V |
|
|
額定輸出電流范圍 |
0~ |
0~ |
0~ |
0~ |
0~ |
0~ |
0~ |
|
|
額定輸出功率 |
60W |
72W |
75W |
75.6W |
76.8W |
75.6W |
76.8W |
|
|
紋波噪聲 注2 |
<80 mV |
<120 mV |
120mV |
120mV |
120mV |
200mV |
200mV |
|
|
輸出調節范圍 |
±5.0% |
±5.0% |
±5.0% |
±5.0% |
±5.0% |
±5.0% |
±5.0% |
|
|
穩壓精度 |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
輸出啟動時間 |
≤1S (220Vac input, Full load) |
|||||||
|
輸出保持時間 |
≥20mS(230Vac input, Full load) |
|||||||
|
電壓過沖 |
<5.0% |
|||||||
|
動態特性 |
10%-100%Load:10%Vp-p 10%-50%Load: 5%Vp-p 50%-100%Load: 5%Vp-p |
|||||||
|
輸入 |
輸入電壓范圍 |
88Vac~264Vac,100~370Vdc |
||||||
|
額定輸入電壓 |
100Vac~240Vac / 47Hz~63Hz |
|||||||
|
啟動電壓 |
88Vac |
|||||||
|
效率 (典型值) |
82.5% |
87% |
88% |
88% |
88.5% |
89% |
89% |
|
|
功率因數 |
>0.96@230Vac,>0.98@120Vac |
|||||||
|
輸入電流(最大值.) |
< |
|||||||
|
啟動沖擊電流 |
< |
|||||||
